HOW DO VEHICLE EXHAUST EXTRACTION SYSTEMS WORK? A COMPLETE TECHNICAL GUIDE

Vehicle exhaust extraction systems are critical safety installations that protect workers from exposure to deadly carbon monoxide (CO) and other harmful emissions in enclosed spaces.

These systems are essential in any facility where vehicles operate indoors, from small repair shops to large fleet maintenance facilities, as ventilation alone is not sufficient to maintain safe working conditions.

With vehicles producing exhaust temperatures up to 600°F at idle, these systems must be carefully engineered to handle both the heat and toxic components of vehicle emissions. Modern extraction systems incorporate sophisticated components and controls to ensure consistent, reliable operation while meeting all local, state, and federal clean air standards.

Core Operating Principles of Exhaust Extraction

Vehicle exhaust extraction systems operate through a sophisticated four-phase process that ensures complete capture and removal of harmful emissions. The system's success depends on proper integration of all components, from tailpipe adapters to discharge stacks.

Here's how each phase works:

1. Capture Phase

The system begins at the point of capture, using specialized tailpipe adapters that must be properly sized and selected based on the specific application.

This critical connection point requires careful consideration of both safety and functionality:

• Tailpipe adapters create an at-source capture method and allow necessary ambient air intake to maintain proper system cooling
• Temperature-resistant rubber or silicone adapters rated for up to 600°F, with metal adapters used for high-temperature and vertical exhausts
• Quick-release mechanisms utilizing hook and chain assemblies for secure vehicle attachment
• Automatic disconnection systems requiring the adapter to be 1/2" larger than the tailpipe to prevent temperature issues and hose damage

2. Collection and Transport Phase

Once captured, the exhaust gases move through the immediate collection system, which can be configured in several ways depending on the facility's needs:

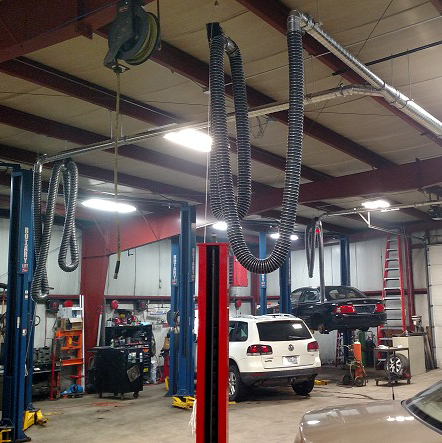

• Primary collection occurs through flexible hoses or vehicle exhaust ducting, available in sizes from 4" to 16" diameter
• Negative pressure ensures consistent gas flow, maintained through either direct-mount fans or central blower systems
• Temperature-resistant materials handle hot exhaust gases, with options ranging from 400°F to 2010°F capability
• Variable diameter options accommodate different vehicle types, with specific configurations for both horizontal and vertical exhaust systems

3. Discharge Phase

The final phase safely expels filtered air outside through carefully engineered discharge points:

• High-efficiency exhaust removal extracts particulates before release into the environment
• Stack design ensures proper dispersion of exhaust gases away from the building
• Monitoring systems verify air quality to maintain compliance with environmental regulations
• Weather protection prevents backdraft while maintaining system efficiency in all conditions
